Brand: Lersion
Product origin: China
Delivery time: 3-15 days
Supply capacity: 100
1 Built in Germany Infineon IGBT module.
2 America new generation DSP chip technology.
3 30 engineers R&D teams, self-design and innovation mother board circuit, system.
4 12years factory manufacturer experience, customer feedback & continuing improvement.
5 design lifespan more than 10 years.
6 OEM/ODM are acceptable.

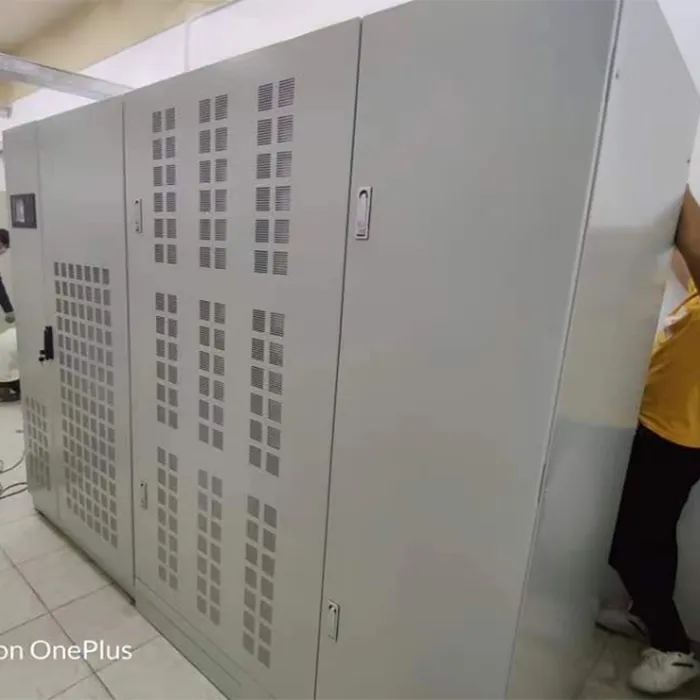

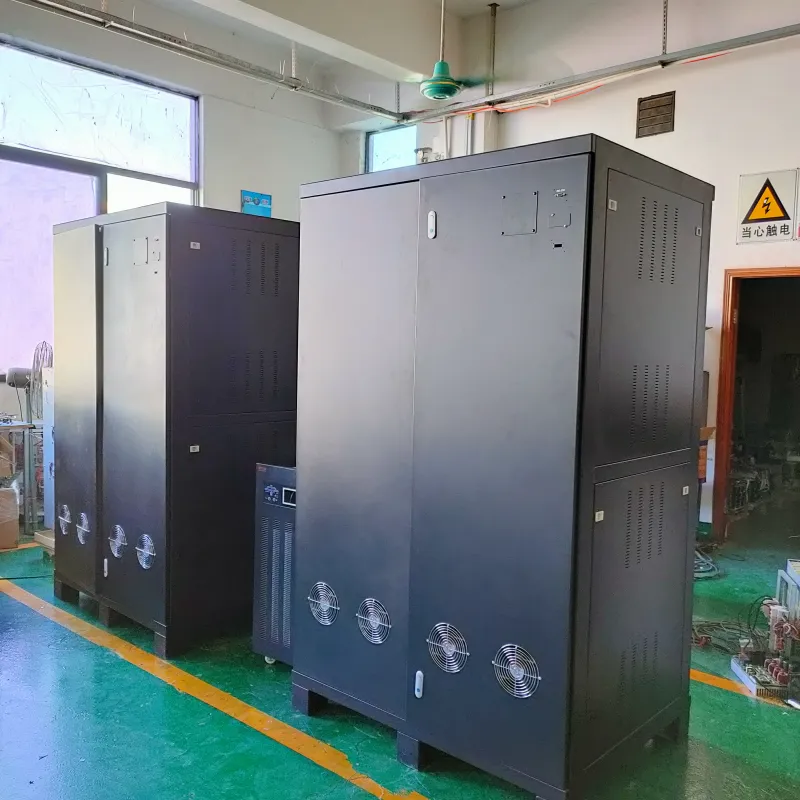

CPN Series Three Phase Off Grid Solar Inverter 300KW
1 Product features
- DSP, MCU and DDC real-time processing all digital control technology
- IGBT inverter technology and high frequency PWM technology
- AC input over-voltage / undervoltage, output over-voltage / undervoltage, output overload, short circuit protection, over temperature protection, undervoltage warning, battery overcharge protection
- 7-inch touch screen digital display
- WiFi remote monitoring (optional)
2 Application of CPN 300KW Off Grid Solar Inverter
 |  |  |  |  |  |
| Residential | Hotel Villa | Ship/island | Farmland | Non grid area | Factory |
3Application Diagram of CPN 300KW

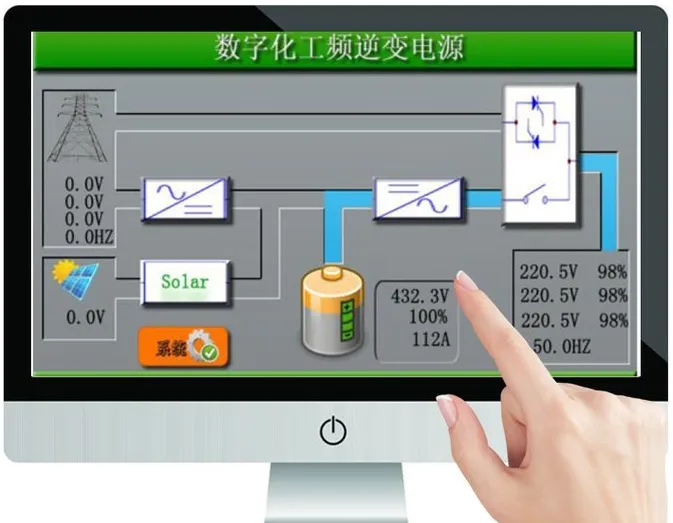

5 Introduction Of Display Panel of 300kw Inverter
①SEQ indicator;
②Recitifier indicator
③Bypass indicator;
④Inverter indicator;
⑤Output indicator;
⑥Battery indicator
⑦Press:Main power priority
⑧Press: Silencer
⑨Fault indicator ;
⑩LCD touch screen;

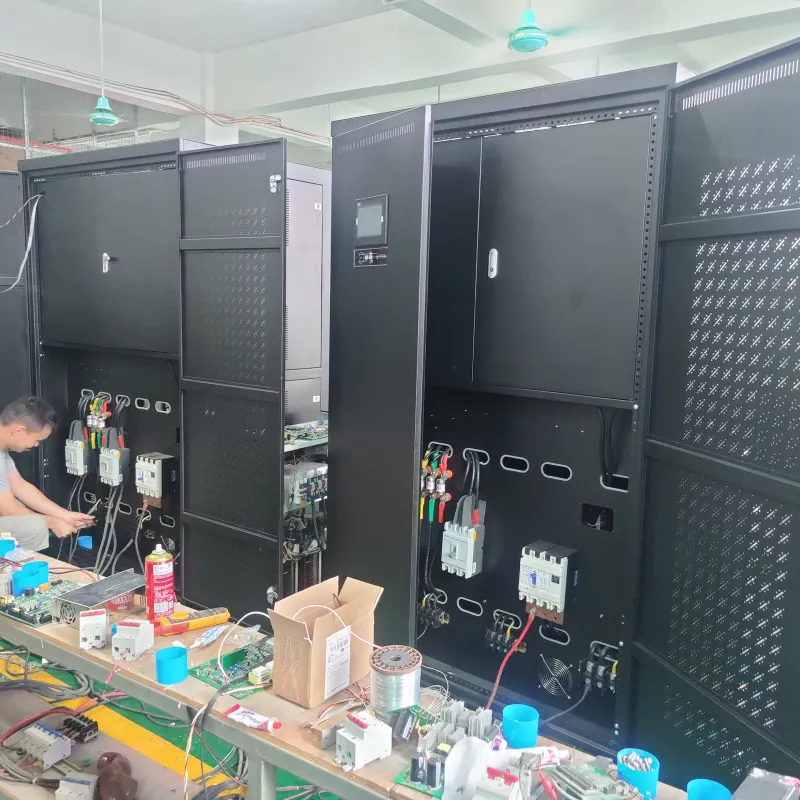

Introduction of Terminal
①AC input switch
②DC input switch
③AC output switch
④Ground wire connection(AC input)
⑤AC input connection
⑥DC input connection,+ for positive and – for negative
⑦AC Output connection
⑧Ground wire connection(AC output)
6 Working Mode of 300KW Inverter
CPN series triphase inverter has two working mode: DC Priority and AC Priority
1. DC Priority
The inverter converts DC input current from either the PV panels or battery bank into AC current to supply the loads. When battery voltage is low, the inverter will automatically switch to the main input power (gr/generator) to supply power to the load. The system automatically switches back to AC after the battery are charged again.
(1) PV with battery bank
(2) Battery only
(3) Only AC power
2. AC Priority
While the AC input is stable, the inverter works in the bypass to supply power to the load and charges the battery pack at the same time. When the AC input is too high / too low / serious distortion / abnormal frequency / fault, the system will automatically switch to the battery inverter to supply power to the load. Once the AC input has been stabilized, the system will switch back to the bypass mode to supply power to the load automatically.
(1) PV, AC power and battery bank
